Ailunce H2S

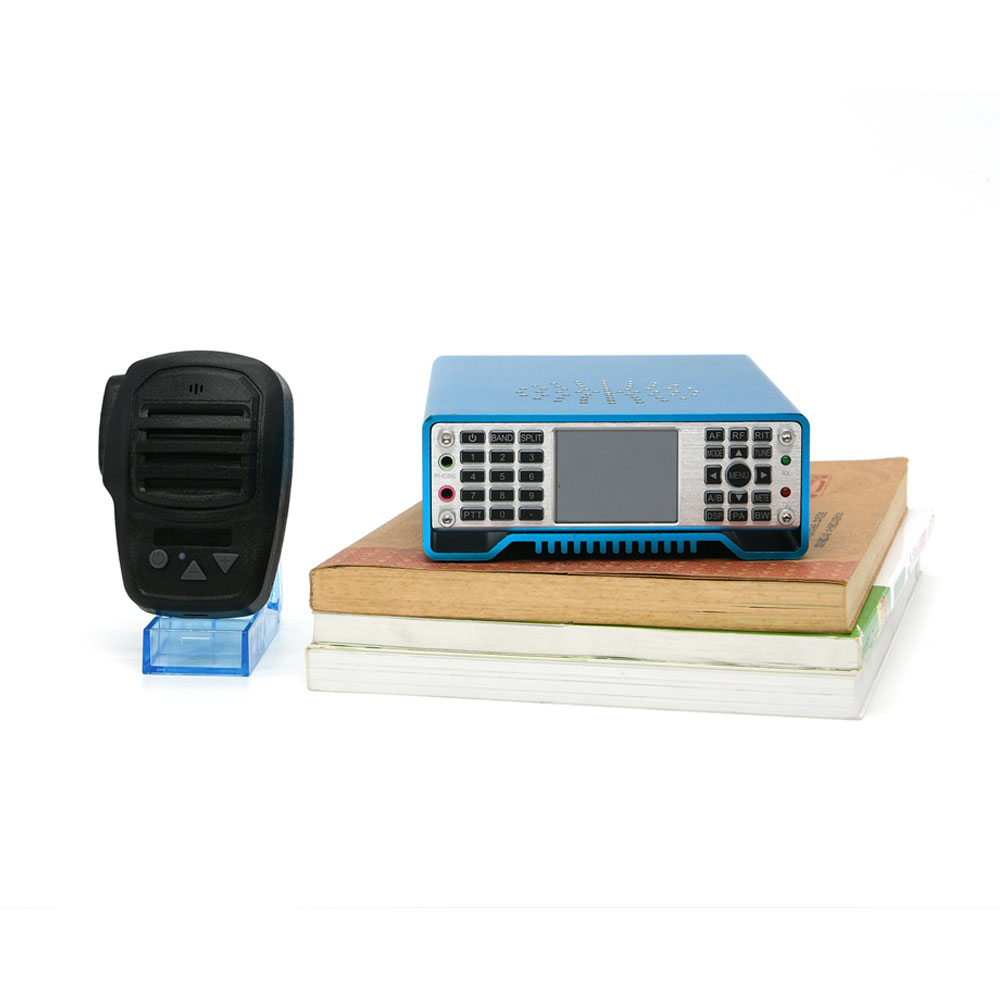

Ailunce HS2 HF VHF UHF SDR Transceiver

HS2 is an ultra-portable full-frequency full-mode SDR radio. Receive frequency coverage 300K~1.6GHZ. The built-in network port can realize remote operation and remote firmware upgrade. The HAM-BOX mobile app we developed allows the mobile phone to easily control and play radio stations(the app is still under development, any progress we will post on ailunce website). HS2 adopts a full keyboard design, built-in Bluetooth module, sound card module and serial communication port module. Full support for currently popular radio control software and logging software. We are working hard to give you more playable space.

Function Feature:

1. Real-time spectrum.

2. Waterfall chart.

3. Doppler frequency tracking(under development).

4. Using software-defined radio technology (SDR), full-band support SSB, CW, RTTY, AM, FM.

5. Double frequency conversion circuit structure.

6. IF width and IF shift hardware and software can be modified to provide powerful IF interference suppression.

7. DSP digital noise reduction.

8. Built-in 160-6m high-speed automatic antenna tuner.

9. Built-in electronic key controller, all parameters can be set flexibly.

10. Built-in sound card with IQ and audio output.

11. Built-in FLASH memory(under development).

12. USB TYPEC3.1 interface for power supply and computer connection.

13. High accuracy TXCO ± 0.5ppm (-10-60 ℃).

14. Ultra-wide working voltage range: 5-32VDC.

15.Power Reversed Polarity Connection Protection

16. Built-in GPS / Beidou, GSM, electronic compass (acceleration, angle sensor) (optional)

17. GPS time (requires optional GPS module).

18. Built-in UTC clock.

19. Voltage display.

20. Unique LORA data transmission (requires optional LORA module).

21. Ultra-light weight: ≤1KG

22. Built-in network port, support remote firmware upgrade(under development).

Configuration

HS2 Technical Data

Transmitter Parameters

Transmitter Architecture SDR

Transmission Mode SSB, CW, RTTY, AM, FM

Frequency Resolution 1Hz

Transmit Frequency Range*1 1.800-2.000,3.500-3.900,5.351.5-5.366.5, 7.000-7.200, 10.100-10.150, 14.000-14.350, 18.068-18.168,21-21.450,24.890-24.990, 28-29.7,50-54, 144-146, 430-440MHz

Output Power HF+6m:SSB(1~30W),CW(0.1~30W), FM(0.1~30W), AM(1~5W), VHF: SSB/CW/FM(0.5~5W) UHF:SSB/CW/FM(0.5~5W)

Power Consumption TX:13.8V~5A RX:13.8V~0.25A(Normal),0.35A(Max brightness&Highest audio)

Carrier Suppression <50db

Spurious Suppression 1.8—54MHZ: ≥50db 144—146MHZ: ≥60db 430—440MHZ: ≥60db

Memory Channel 999

Receiver Parameters

Receiver Architecture SDR

Receiver Mode SSB, CW, RTTY, AM, FM

Receive Frequency Range 300KHz-1.6GHz*2

IF Bandwidth 20KHz

IF 12KHz

Sensitivity*3 SSB/CW:（BW: 2.4kHz @ 10dB S/N） 0.18uV（1.8—54MHZ）, 0.25uV（144—146MHZ）, 0.25uV（430—440MHZ） AM:（ BW: 6kHz @ 10dB S/N） 15uV（0.3—1.8MHZ）,

Standard Configuration Option Configuration

FM module GPS module

Bluetooth module LORA module

Bluetooth microphone Electronic compass module

Built-in sound card Wired microphone

Built-in automatic antenna tuner Shortwave balcony antenna

Built-in memory External frequency wheel(under development)

2uV（1.8—54MHZ）, 2uV（144—146MHZ）, 2uV（430—440MHZ） FM:（BW: 15kHz @ 12dB S/N） 0.5uV（28.0—29.7MHZ）, 0.25uV（50—54MHZ）, 0.3uV（144—500MHZ）, 0.5uV（430—440MHZ）

IF Suppression ≥70db

Image Suppression ≥80db

Audio Output Power 2W (10% distortion rate, 8Ω load, 3KHZ)

Antenna tuner parameters

Tuning frequency range 1.8-54MHZ

Tuning impedance range 16.7Ω--150Ω unbalanced (SWR is better than 1: 3)

Tuning accuracy VSWR: 1: 1.5 or less

Tuning time 2-5S (full segment 10S)

Tuning method Automatic / Manual

Spectrum parameters

Spectrum bandwidth 48K

RF Spectrum FFT

Structural parameters

Size 170X120X45mm (excluding protrusions)

Weight ＜1KG

Working voltage parameters

Voltage range 5—32V receiving range, 5-12V transmit power limit, 12-18V full power output, 18-32V transmit power limit.

Antenna interface

Antenna interface TNC/BNT/M/N (optional)

Working environment parameters

Working temperature -10 ℃ to 60 ℃

Working humidity 10% -- 90%

Note *1: Frequency range is different according to different countries or areas, the actual frequency

by local legal provisions.

Note *2: Data retention.

Note *3: to be calibrated, the final interpretation of all manufacturers.

He preguntado en Ailunce y me responden que el equipo no tiene la función Scaner.

Sorry, we don't have the scanner.
