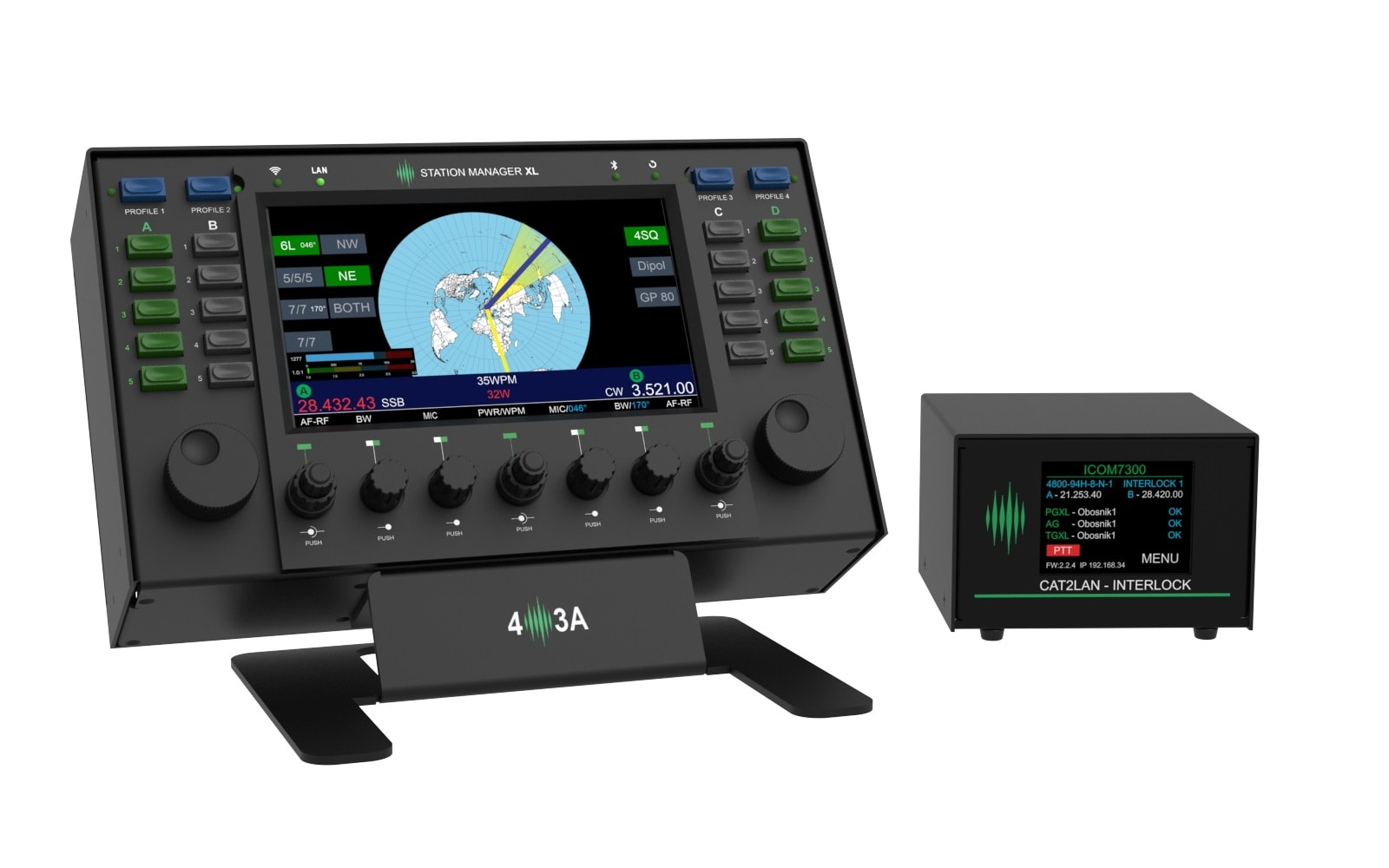

Nuevo Station Master XL + CAT2LAN + 4Kw ampli Power Genius XL Twin

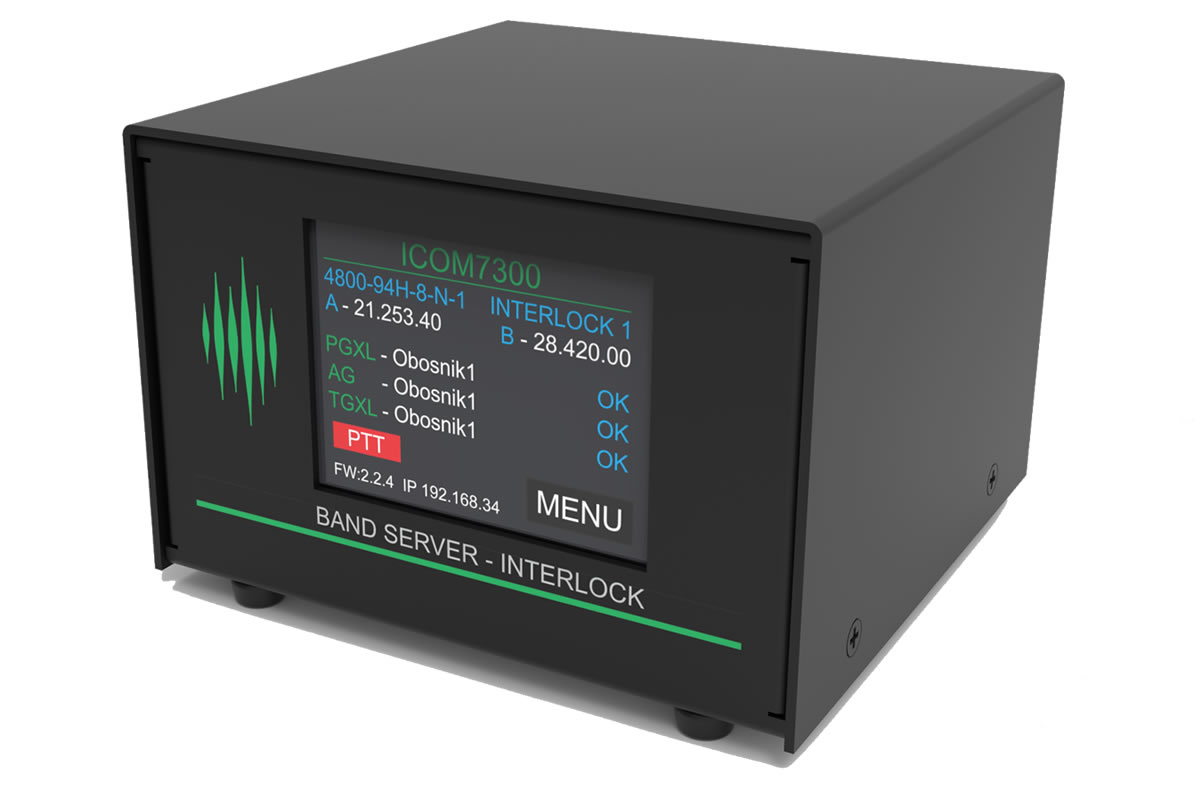

Con el Station Managel XL también presentan el CAT2LAN.

Un pequeño pero potente interface para pasar de Serie RS232 a red LAN cualquier aparato.

CAT2LAN is a versatile and reliable LAN interface designed for both amateur radio enthusiasts and commercial radio system operators. It enables seamless control of transceivers, linear amplifiers, rotators, tuners, or any device equipped with RS232 or CI-V communication – all via your local network.

With CAT2LAN, your radio or any other RS232 or CI-V controlled equipment becomes fully accessible for remote or local automation, giving you maximum flexibility and centralized station management.
Whether you're building a sophisticated contest station or a smaller DX setup, CAT2LAN streamlines your workflow.
It controls:
Yaesu, Kenwood, Icom, Elecraft or any other RS232 controlled radio, or device.

Designed for Flexibility & Integration
CAT2LAN features multiple communication ports:

• A transparent CAT port that passes RS232 commands directly to your radio for full control.
• A dedicated Band and PTT server, broadcasting Band, Mode, and PTT status over the network to other devices and applications.

Available in Two Versions

• CAT2LAN S
  Functions as a Band, Mode, and PTT status server. Ideal for distributing frequency and PTT information across your networked devices.
• CAT2LAN XL
  Offers all features of the S version, plus:
  • A transparent CAT port
  • Audio interface for remote listening or digital modes
  • CW (Morse code) keying capability
    Perfect for advanced remote station setups.

Connectivity Options

• Supports both RS232 and CI-V (Icom) interfaces
• Includes connectors for further distribution of CAT/CI-V signals, allowing easy integration with multiple devices

CAT2LAN is the perfect solution for anyone looking to bring their radio station into the IP age — whether you're a serious contester, DXer, remote operator, or part of a commercial radio operation.

73, Máximo EA1DDO

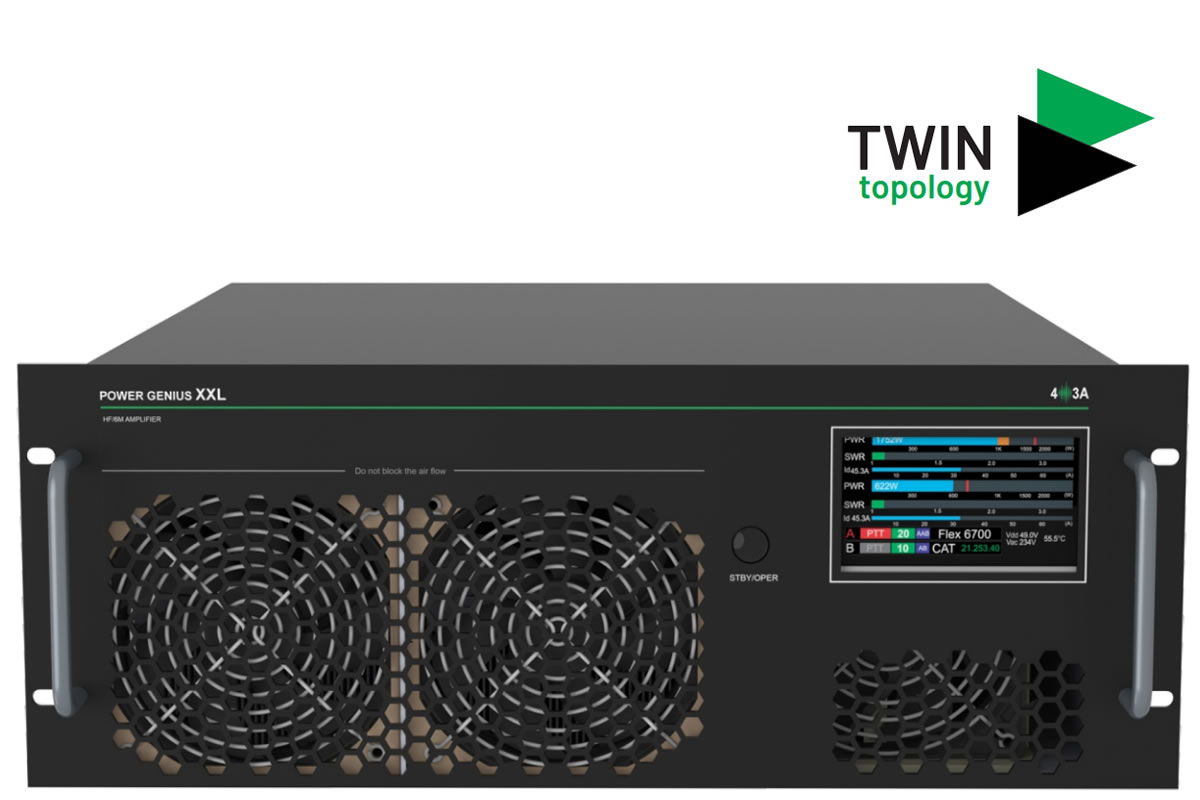

Y para terminar, el nuevo amplificador Power Genius XXL Twin

Viene a ser dos amplificadores de 2Kw cada uno, en la misma caja. Puede operar en diferentes combinaciones de radios y operadores. Y se puede combinar hasta cuatro de éstos obteniendo 10Kw de salida total.

The revolutionary TWIN topology offers ultimate flexibility for your radio station, transforming with a press of a button to match your desired configuration.
Combine the two modules into a single powerful amplifier, delivering 3500 watts of power in SO2R configuration.

Alternatively use it as two fully independent amplifiers, each delivering up to a 2000W of output. Perfect for contest stations or specialized applications - this configuration offers maximum versatility and control.

First ever features makes XXL TWIN unique.

The first ever features built into the XXL TWIN include the MEffA^TM algorithm and the first ever TWIN topology that combines two independent amplifier modules into one.

TWIN topology provides the user with incredible flexibility. Depending on the needs and radio station layout, this amplifier can operate either as two fully independent amplifiers (1500+ W each) or combined into one, providing 3500W of power with SO2R configuration.

PA SPECIFICATIONS

RF Power Output: 2 x 1500W (ICAS)
Exciter Drive Level: 50W Typical (US version)
Transistors: MRF1K50H x 4
Exciter Inputs: SO-239 x 2
Antenna Outputs: SO-239 x 2
Antenna Impedance: 50 Ohm Unbalanced
Cooling: Thermally Controlled Fans

MECHANICAL

Dimensions: 19" x 4U x 50 cm
Weight: 29 kg (63 lbs)
Operating Temp: -25ºC to +40ºC
